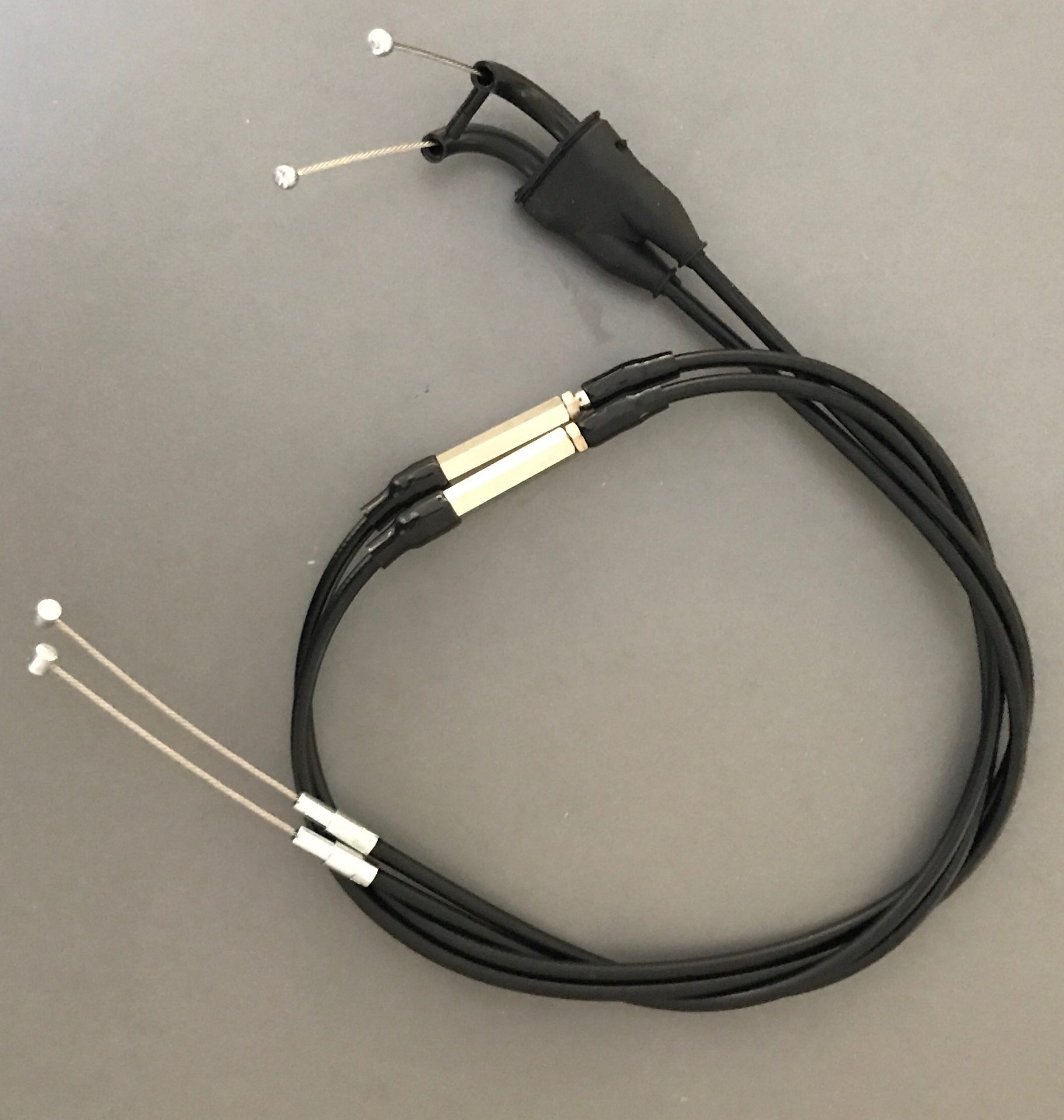

This replacement cable suits the Mikunioz, Push Pull Quick Action throttle and cable assembly for use on Mikuni HSR / TM42-6 TM45 and TM48 Pumper carbs with 7’8″ handlebars. The total length of the outer cable measuring from the end of the lower carb end ferrule to the elbow on the top curved plastic fittings is 1000mm. On bikes with lower bars these will run nicely out around the speedo and the extra length then also allows for the fitment of 2″ risers. There is a small spring on the bottom of the return cable for setting a slight pre-load on the cable when the throttle is in the closed position, which then also controls any inner wire slack as the rotor moves under acceleration. This premium grade throttle cable, for use with Mikuni TM/HSR Carburetors, has a Nylon lined outer housing. The Nylon liner inside the outer cable housing conduit is for reduced friction and heat resistance. The cables come with both mid and lower cable adjusters. All throttle cables must be lubricated during installation with cable lube or a very light oil such as 3 in 1 to avoid clogging. Besides the need to lubricate the inner wire in the housing, the cable end barrels at their pivot points should be lubricated with water proof grease. If you need to clean your cable which is particularly relevant for dirt bikes. We recommend using WD40 or a very light oil such as 3 in 1. This effectively washes away dirt from the cable, without clogging it. This manufacturer has been making aftermarket throttles, cables and other products of quality for Mikunioz since the mid-1980’s.
