B3000-259-H-5 AIRman Tail-a-Gater Tailgate Cylinder

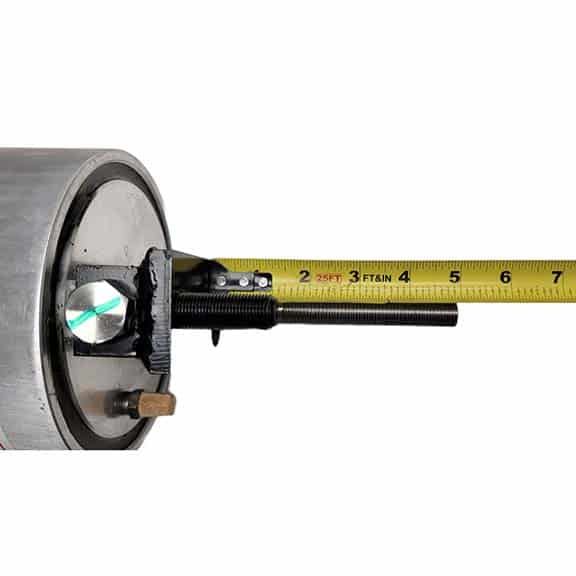

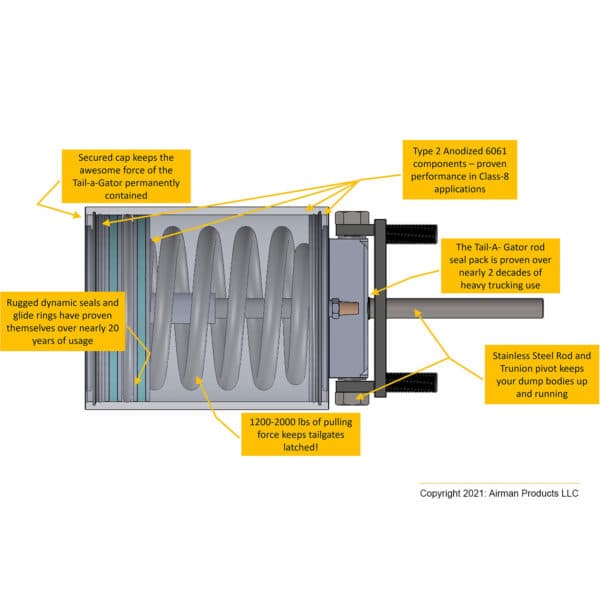

B3000-259-H-5 AIRman Tail-a-Gater Tailgate Cylinder B3000-259-H-5 AIRman Tail-a-Gater Tailgate Cylinder Benefits & Features: Heavy duty aluminum thick wall tubing with pivoting trunnion flange. Six inch diameter bore and piston. Pivoting trunnion flange mount permits the cylinder to follow the connecting mechanism through the rotational movement to prevent extraordinary side loading and wear. Compact construction and light weight material provide resistance to the harsh environmental conditions. Rated to 150 psi Rated -40° to 180° F Specs: Model Number: B3000-259-H5 Bore Size: 6.00in Cylinder Length: 7-7/8in Stroke: 3.00in Extended Rod Length: 5in (Measuring from flat studded plate to end of rod) Rod Size: 5/8in OE Numbers: MAC Trailer 27080090 Used in a 52004142 MAC Tailgate Kit 2190022 PB3000 T212703259 Drawing / Dimensions: B3000-259-H-5-2020-11-18 Air inlet is on the back plate. Vent is on the pushrod side.     Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B3000-259-H-5 Categories: Air Cylinders, Air Supply, Heavy Truck Tags: 2190022, 27080090, B3000, b3000-259, b3000-295, b3000259, b3000259h5, b3000295, dump truck tailgate air cylinder, PB3000, T212703259, tailgate air cylinder
