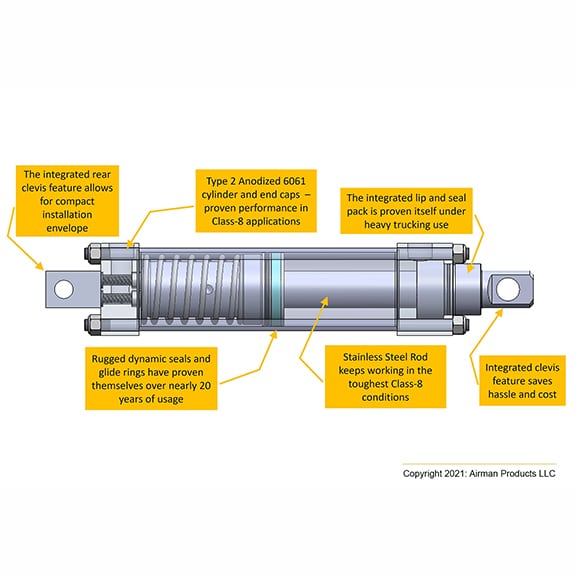

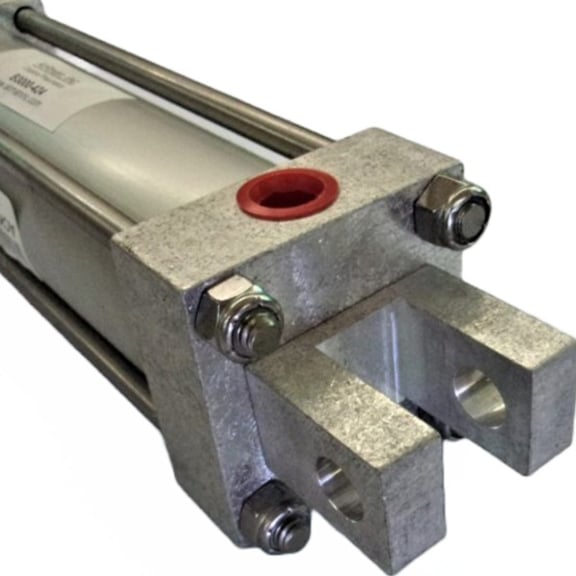

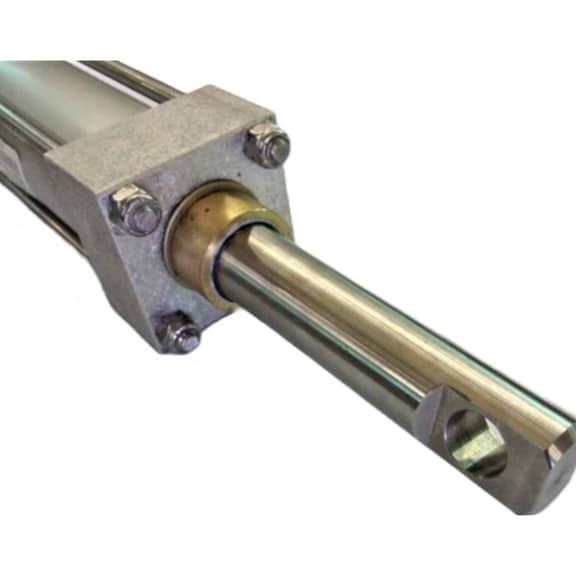

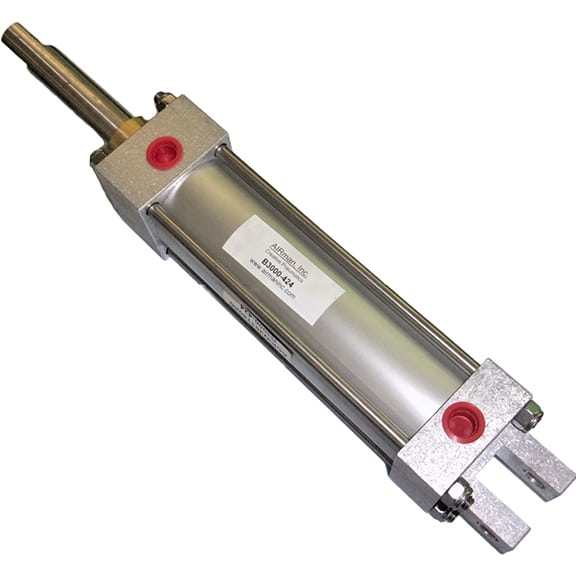

B3000-424 AIRman 2in Air Cylinder 3in Stroke B3000-424 AIRman 2in Air Cylinder 3in Stroke AIR CYLINDER, 2.0 X 3.0 STROKE, SPRING EXT., DOUBLE ACTING Usually used as an tailgate cylinder. Benefits & Features: Integrated front and rear clevis saves hassle and cost. Has an internal spring to help stay extended when there is no air. Type 2 anodized 6061 cylinder and end caps for proven performance in class 8 applications. Stainless Steel rod for best corrosion resistance. Rugged seals for heavy trucking use. Rated to 5-150 psi -40C -180C -60 hour cycle Lifecycle 350k -3M cycles depending on the application (min 10x worst case life) Temperature -40C -180C -60 hour cycle Salt Spray ASTM B-117-97 -5 -10 days Vibration Resonance frequency – 1 M cycles @ 5Gs Vibration Step Temp and cycle sweep up to 50 Gs Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle; Additional direct seal soak -1 week Sludge 350k cycles impingement, water and diesel oil mix Dust ISO 12013 Arizona road dust Specs: Model Number: B3000-424 Bore Size: 2.00in Stroke: 3.00in Extended Rod Length: 15.0 in from center of clevis eye to eye Collapsed Rod Length: 12.0 in from center of clevis eye to eye Clevis Eye Hole Diameter: .625 in Rod Diameter: 1 in OE Numbers: AKW381140A0 ACKW381140A0 Drawing / Dimensions: B3000-424 DATA SHEET REV A1 Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B3000-424 Categories: Air Cylinders, Air Supply, Heavy Truck Tags: ACKW381140A0, AKW381140A0, B3000, B3000-424, B3000424, dump truck tailgate air cylinder, tailgate air cylinder
