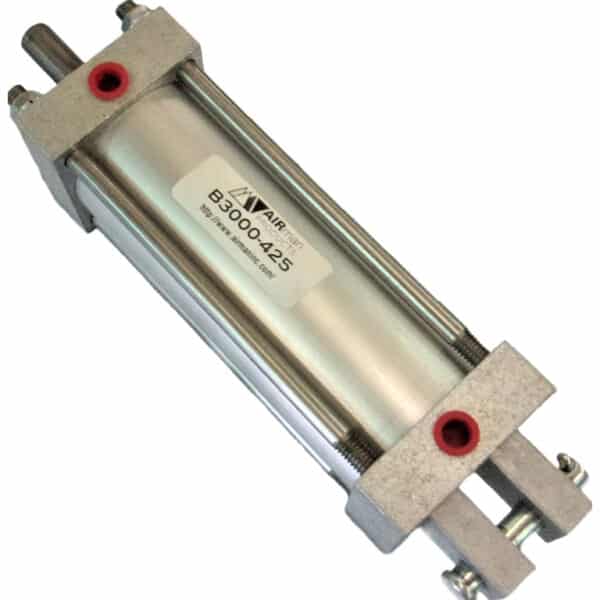

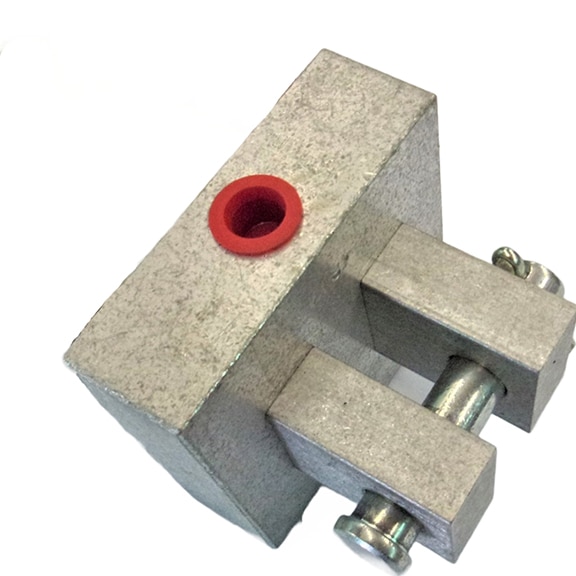

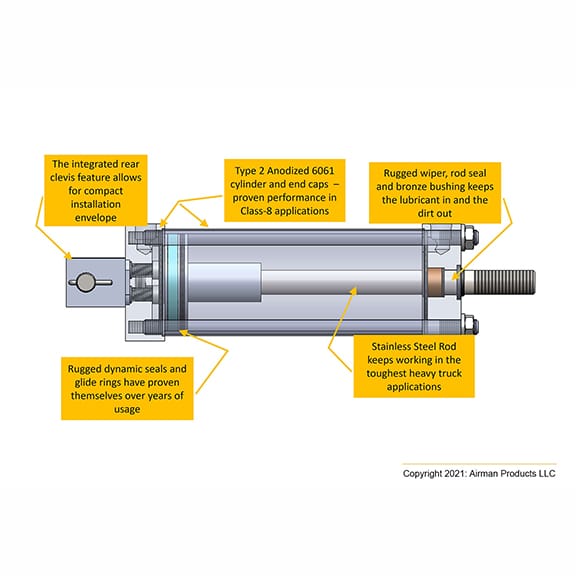

B3000-425 AIRman 2.5in Air Cylinder 4.13in Stroke B3000-425 AIRman 2.5in Air Cylinder 4.13in Stroke AIR CYLINDER, 2.50 BORE x 4.125 STROKE, DOUBLE-ACTING Usually used as an tailgate cylinder. Benefits & Features: Integrated rear clevis saves hassle and cost. Type 2 anodized 6061 cylinder and end caps for proven performance in class 8 applications. Stainless Steel rod for best corrosion resistance. Rugged seals for heavy trucking use. Rated to 5-150 psi -40C -180C -60 hour cycle Lifecycle 350k -3M cycles depending on the application (min 10x worst case life) Temperature -40C -180C -60 hour cycle Salt Spray ASTM B-117-97 -5 -10 days Vibration Resonance frequency – 1 M cycles @ 5Gs Vibration Step Temp and cycle sweep up to 50 Gs Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle; Additional direct seal soak -1 week Sludge 350k cycles impingement, water and diesel oil mix Dust ISO 12013 Arizona road dust Specs: Model Number: B3000-425 Bore Size: 2.5in Stroke: 4.125in Extended Rod Length: 15.63 in from center of clevis eye to end of push rod Collapsed Rod Length: 11.5 in from center of clevis eye to end of push rod Clevis Eye Hole Diameter: 1/2 in Rod Diameter: 5/8 in OE Numbers: ACKW381140B0 Drawing / Dimensions: B3000-425 CUSTOMER REV A1 Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B3000-425 Categories: Air Cylinders, Air Supply, Heavy Truck Tags: ACKW381140B0, B3000, B3000-425, B3000425, dump truck tailgate air cylinder, tailgate air cylinder
