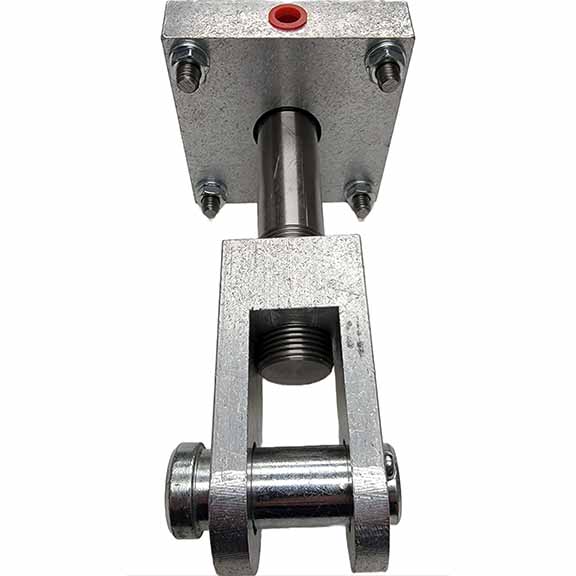

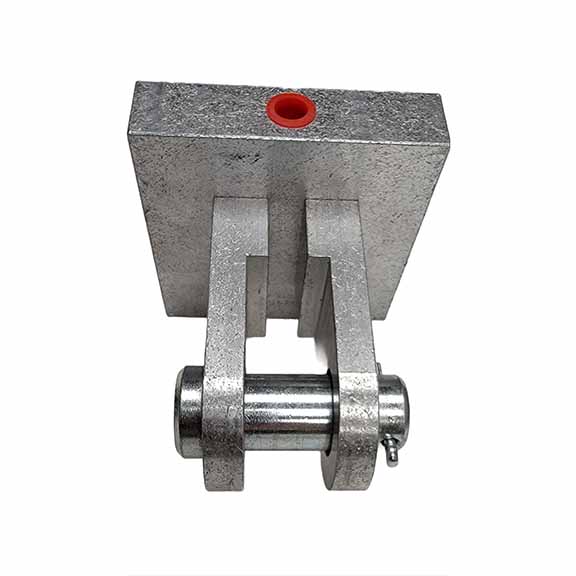

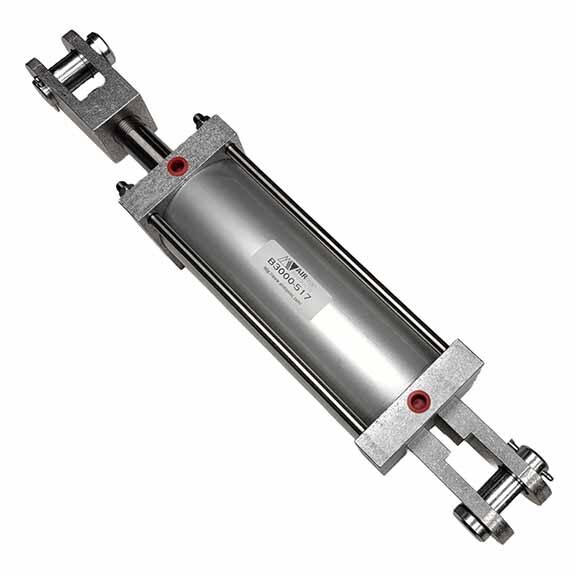

B3000-517 AIRman 3.5in Air Cylinder 8in Stroke B3000-517 AIRman 3.5in Air Cylinder 8in Stroke AIR CYLINDER, 3.50 BORE x 8 STROKE, DOUBLE-ACTING Benefits & Features: Integrated rear clevis saves hassle and cost. Type 2 anodized 6061 cylinder and end caps for proven performance in class 8 applications. Stainless Steel rod for best corrosion resistance. Rugged seals for heavy trucking use. Rated to 5-150 psi -40C -180C -60 hour cycle. Lifecycle 350k -3M cycles depending on the application (min 10x worst case life) Temperature -40C -180C -60 hour cycle Salt Spray ASTM B-117-97 -5 -10 days Vibration Resonance frequency – 1 M cycles @ 5Gs Vibration Step Temp and cycle sweep up to 50 Gs Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle; Additional direct seal soak -1 week Sludge 350k cycles impingement, water and diesel oil mix Dust ISO 12013 Arizona road dust. Specs: Model Number: B3000-517 Bore Size: 3.5in Stroke: 8in Extended Rod Length: 20.50 in from center of clevis eye to center of clevis eye Collapsed Rod Length: 12.5 in from center of clevis eye to center of clevis eye Clevis Eye Hole Diameter: 1 in both ends with brass bushings Rod Diameter: 1-1/8 in Includes two 1in clevis pins OE Numbers: None Drawing / Dimensions: B3000-517 CUSTOMER REV A Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B3000-517 Categories: Air Cylinders, Air Supply, Heavy Truck Tags: B3000, B3000517, dump truck tailgate air cylinder, tailgate air cylinder
