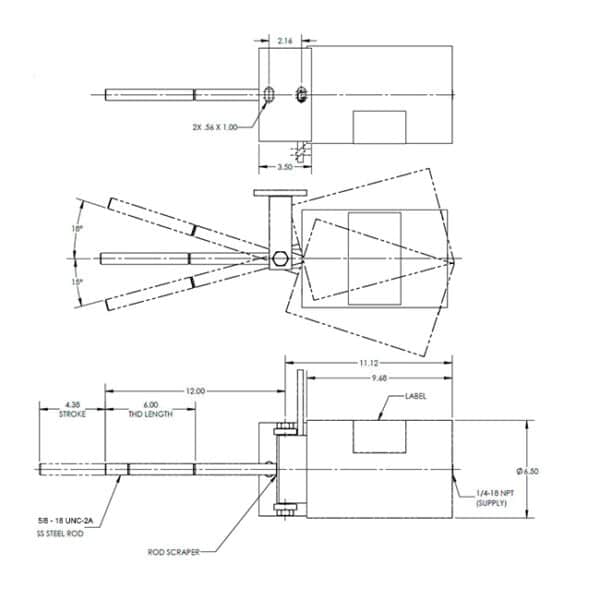

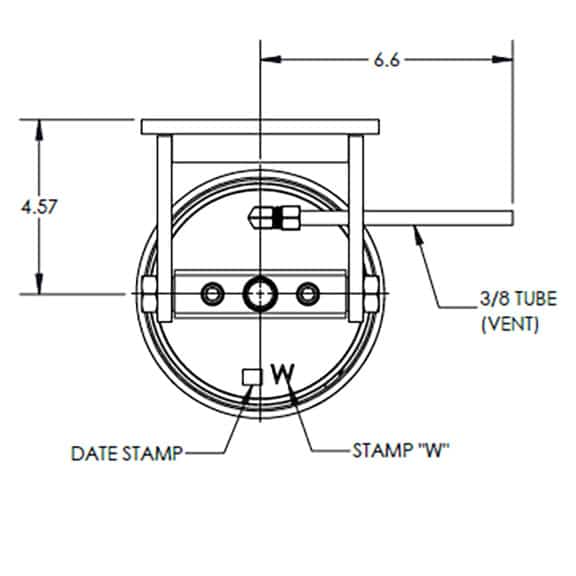

B3000-379 AIRman Tail-a-Gater Tailgate Cylinder w/Bkt B3000-379 AIRman Tail-a-Gater Tailgate Cylinder w/Bkt DOUBLE ACTING CYLINDER Benefits & Features: Heavy duty aluminum thick wall tubing with pivoting trunnion flange. Six inch diameter bore and piston. Pivoting trunnion flange mount permits the cylinder to follow the connecting mechanism through the rotational movement to prevent extraordinary side loading and wear. Compact construction and light weight material provide resistance to the harsh environmental conditions. Rated to 150 psi Rated -40° to 180° F Specs: Model Number: B3000-379 Mounting bolt spacing 2.16in Stamped with letter “W” on end DOUBLE ACTING MOUNTING BRACKET AND SPRING LOAD TO MATCH MGM P/N R5AHD. Bore Size: 6.00in Cylinder Length: 11.12in measuring from center of mounting plate swivel bolts to end of cylinder Stroke: 4.38in Extended Rod Length: 16.48in measuring from center of mounting plate swivel bolts to end of rod Collapsed Rod Length: 12.10in measuring from center of mounting plate swivel bolts to end of rod Rod Size: 3/4-16 in Rod Thread Length: 6.00in Supply port 1/4NPT OE Numbers: N/A Drawing / Dimensions: B3000-379 CUSTOMER PRINT REV D Air inlet is on the back plate. Vent is on the pushrod side. Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B3000-379 Categories: Air Cylinders, Air Supply, Heavy Truck
