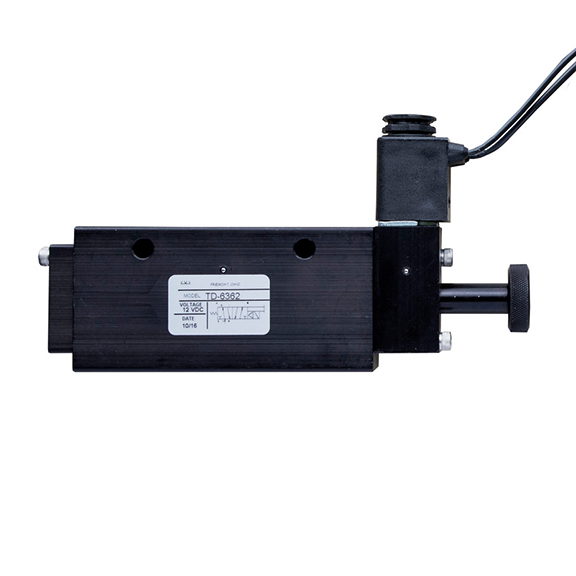

TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob
$28.58
$36.3
TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob This valve made by Alkon is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others. TD-6362 Series valves are 4-way, 3/8” NPT port, 12 Vdc valves with push-turn-and-lock manual override. Air is normally supplied to port #1 and flows normally to port #2. Port #4 flows freely to exhaust port #5. When energized, air flows freely from port #1 to port #4, and port #2 flows freely to exhaust port #3. Specs: Manual Lock Override 4-way, single solenoid, spring return Black anodized aluminum 12v DC 18in Leads Ports: 3/8″ NPT 150 psi max. supply Made in the USA! Can be used in place of a TD-4632 (1/4 NPT Ports) if you use 3/8 to 1/4 NPT Bushings. Drawing and Spec Sheet: TD-6362 Spec Sheet Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-TD-6362 Categories: Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Heavy Truck, Lift Axle, Solenoid Valves Tags: TD4632, TD6362
