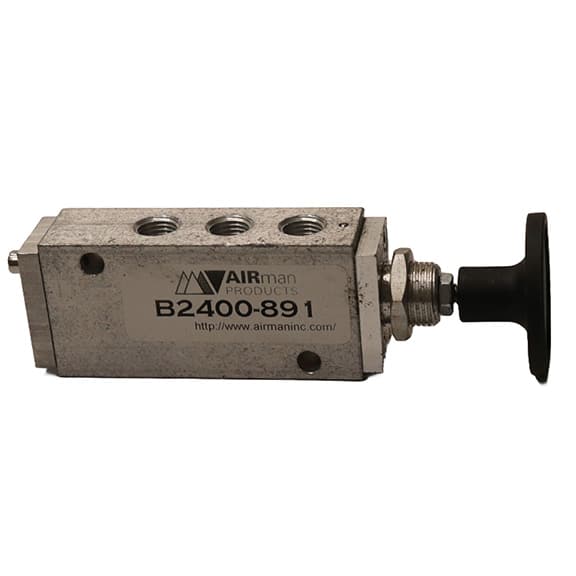

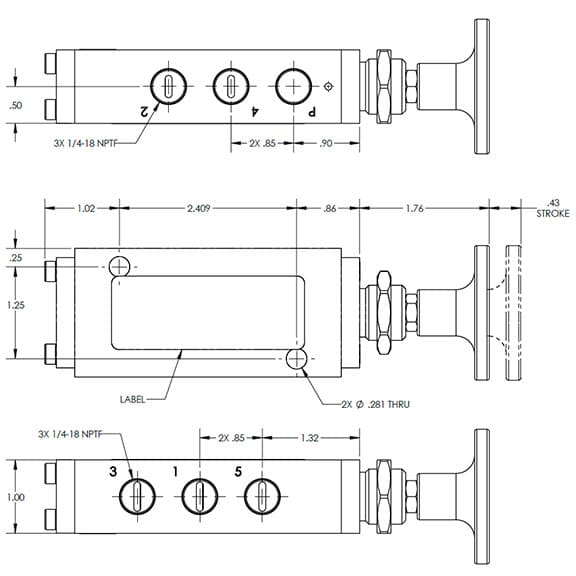

B2400-891 AIRman 5-Port 2-Position Valve w/Pilot Return B2400-891 AIRman 5-Port 2-Position Valve w/Pilot Return Threaded aluminum mounting boss for 3/4″ to 1″ diameter through hole mounting — nut included. Aluminum shaft with stainless steel extension provides easy identification of valve position and long cycle life — tested to over FIVE MILLION cycles . Details: (5) 1/4″–18 FPT ports (1) 1/4” – 18 FPT Pilot Port 3/4″-16 Panel Nut (2) 9/32″ dia. body mounting holes Application: Two position valve operates any double acting air cylinder. Two position valve operates systems where full air or vacuum pressure must be isolated. Air applied to the pilot port will return the push buttion to the “in” position. Drawing and Spec Sheet: B2400-891 CUSTOMER PRINT REV A2 Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B2400-891 Categories: Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
