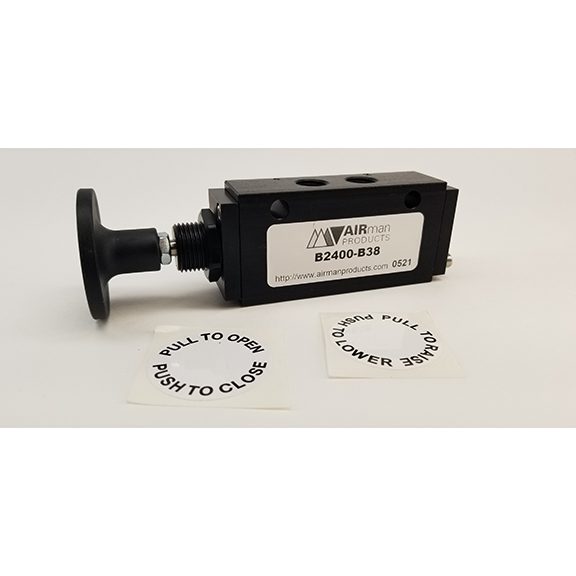

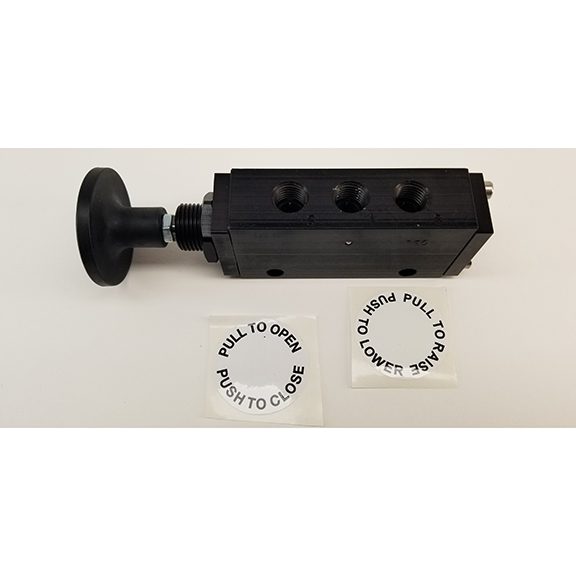

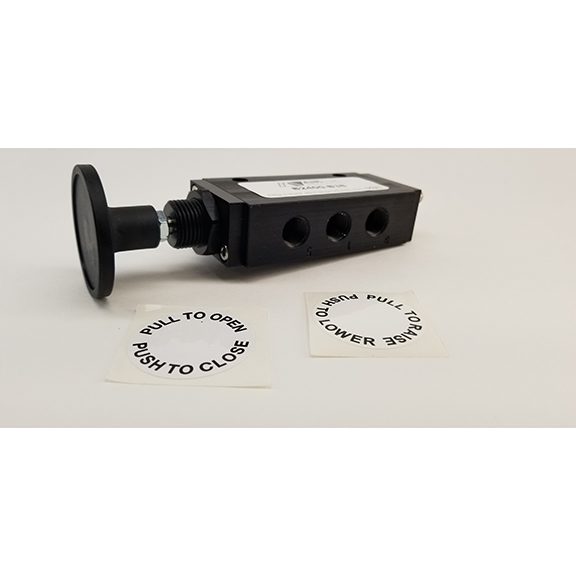

B2400-B38 AIRman 5-Port 2-Position Valve B2400-B38 AIRman 5-Port 2-Position Valve Replacement for 320175 & 320121 Velvac 5 Port 2 Position Valve Threaded aluminum mounting boss for 3/4″ to 1″ diameter through hole mounting — nut included. Aluminum shaft with stainless steel extension and delrin detent ring provides easy identification of valve position and long cycle life — tested to over FIVE MILLION cycles . Details: (5) 1/4″–18 FPT ports (2) 9/32″ dia. body mounting holes 3/4″-16 Panel Nut (Replaces Part No. 320107) This part is the same as 320175 & 320121 except side mounting hole spacing. Also, the stud mounting hole is 3/4 in instead of 1 in. Application: Two position valve operates any double acting air cylinder. Three position valve operates systems where full air or vacuum pressure must be isolated. Replaces Tramec Sloan 320121, Tramec Sloan 320175 (Standard Panel Mount), Van Horn 17524-01, 1752401, Automann 170.V24203 Drawing and Spec Sheet: B2400-B38-CUSTOMER-PRINT-REV-B Share this… Email Facebook Pinterest Twitter Linkedin Print SKU: AP-B2400-B38 Categories: Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull Tags: 320121, 320175, B2400, B2400-B38
